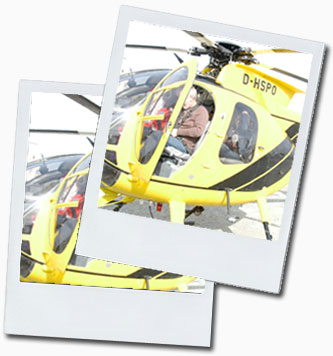

The Helicopter


The MD 500E delivers the highest speed, payload and productivity in its class. Rear seat passengers have greater headroom and visibility than earlier Model 500s. Refinements provide first class front and rear seating with ample legroom. The T-shaped instrument panel provides space for a full complement of modern avionics.
With a five-bladed main rotor and 450-shp Allison 250-C20R turbine engine, the MD 500E is the best performing helicopter in its class.
The MD 500E light turbine helicopter allows easy configuration conversions from a deluxe, five-place executive transport to a utility cargo carrier. Typical uses include urban and remote location transportation of key personnel, technicians and craftsmen; aerial survey, patrol and photography; agricultural and fire-fighting applications; air rescue operations; and numerous other tasks within the construction, petroleum and forestry industries.
We can serve all Cyprus, Nicosia (Lefkosia), Limassol (Lemeso), Larnaca (Larnaka), Paphos (Pafos) and Famagusta - Paralimni(Ayia Napa, Protaras). Also we expand our services in Greece, Germany and Morocco.

TECHNICAL DATA SHEET
Make: Mc Donnell Douglas
Type: MD500E
Seats: 4 Passengers / 1 Pilot


PERFORMANCE SPECIFICATIONS
Maximum Cruise Speed: 249 km/hr 135 kt (155 mph)
Maximum Range: 431 km 233 nm (268 mi)
Maximum Endurance: 2.5 hr
Maximum Rate of Climb: 9.0 m/sec 1,770 fpm
Maximum Operating Altitude: 4877 m 16,000 ft
Service Ceiling: 5029 m 16,500 ft
Maximum Hook Capacity: 907 kg 2,000 lb

WEIGHTS

Maximum Gross Weight: 1361 kg 3,000 lb

POWER PLANT

Allison Model 250-C20R gas turbine, Rated power: 336 kw 450 shp
Derated for reliability and safety to: Takeoff power: 280 kw 375 shp
Max. continuous power: 261 kw 350 shp

Call Sign
: D - HSPO
